Wall Mounted Cable Machine Dual-Pulley Station for Home
The Valor Fitness BD-62 Wall Mount Cable Station is a machine every home needs. It’s a versatile, space saver that provides the opportunity to incorporate strength training with the use of a cable system in your home or commercial gym.

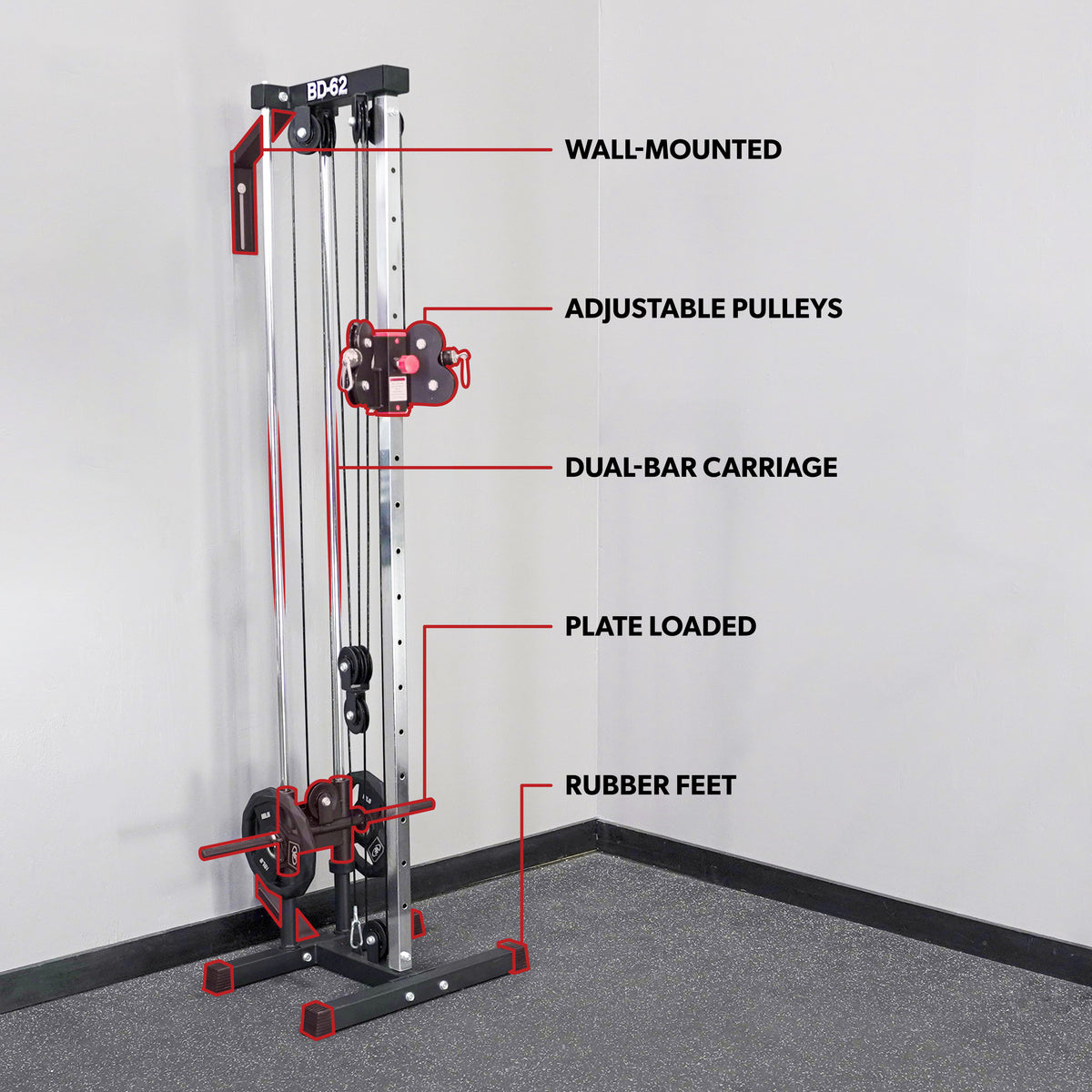

Features and Benefits:
- SPACE SAVER: This wall mount cable station is versatile, space saver provides the opportunity to incorporate strength training with the use of a cable system in your home or commercial gym.
- DUAL PULLEY SYSTEMS: Huge variety of workout options and positions. The machine comes with 16 adjustment positions to allow the user to perform a wide range of bilateral and unilateral exercises.
- DOUBLE BAR TRACK: Easy and smooth use. The double bar track provides stability and allows the plate loaded carriage system to glide smoothly along the tracks, supplying the perfect amount of resistance.

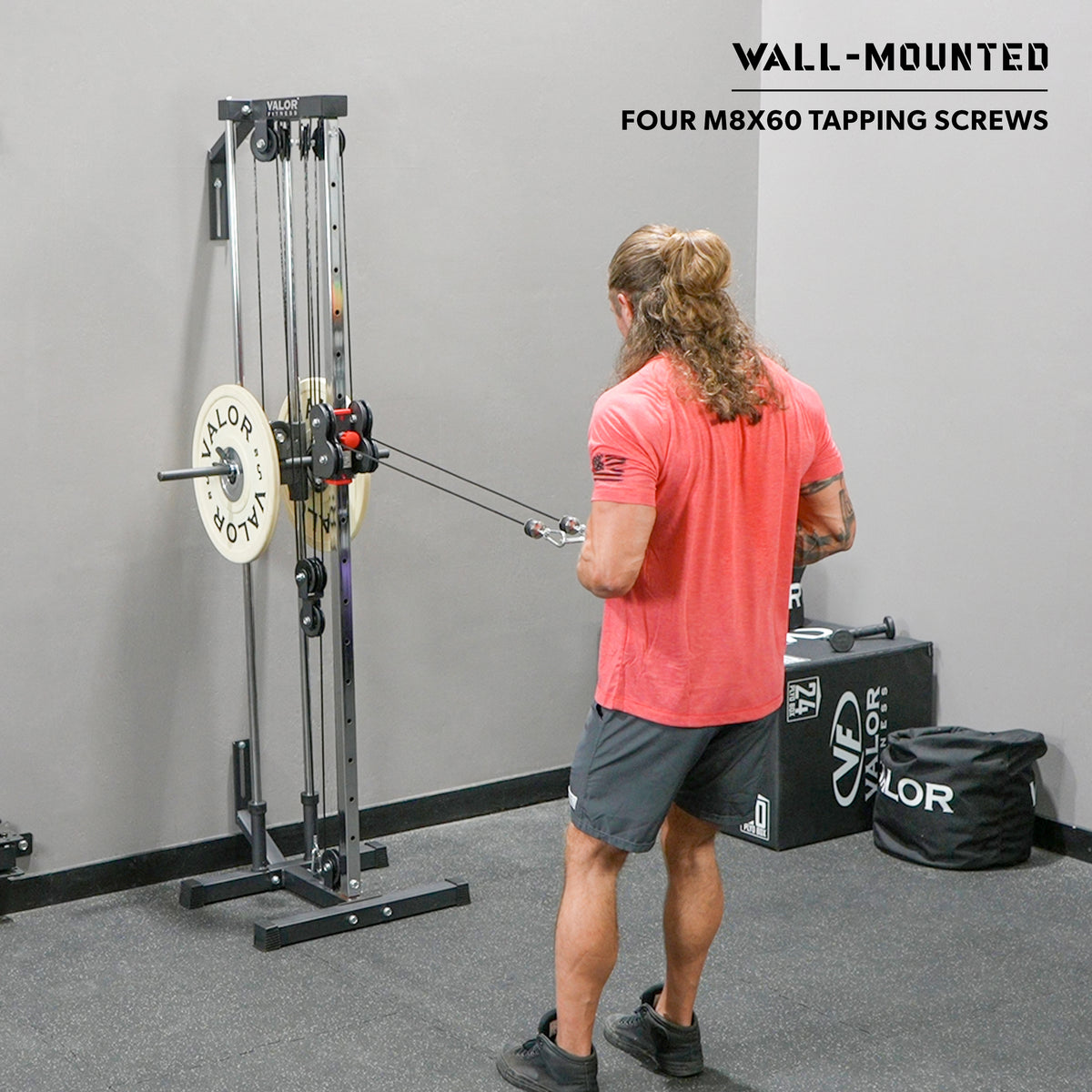

- WALL MOUNT: The BD-62 attaches to the wall at the top and bottom for added support and stability and to ensure the unit stays in place while in use. If you would prefer to not attach a machine, check out the BD-61 Cable Station for a machine you will not need to mount into the wall. This would be a better fit.

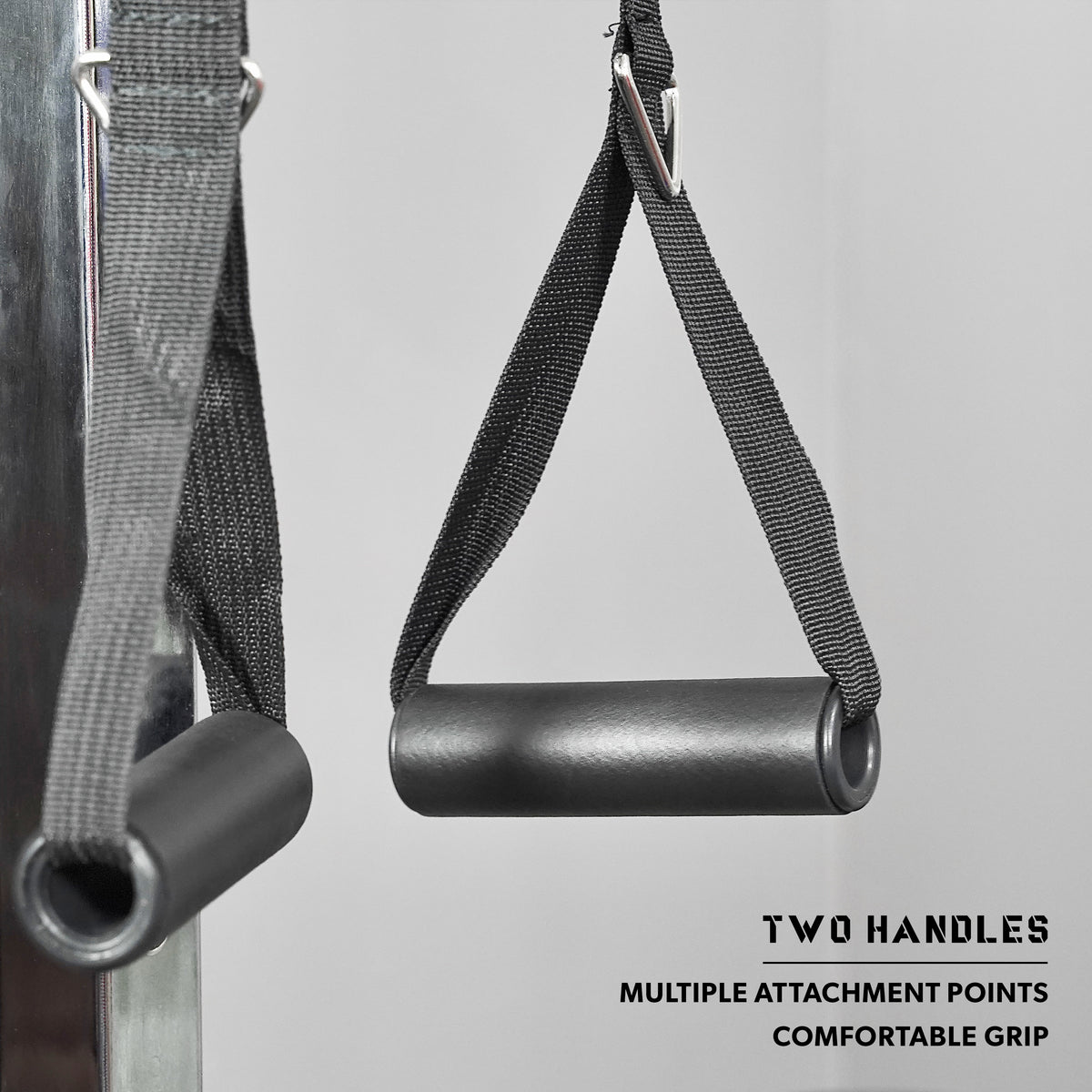

- INCLUDES STRAP HANDLES: Two, comfortable, easy to grab, single strap handles are included in the purchase and can be adjusted to 5 positions depending on your preference in comfort or exercise.

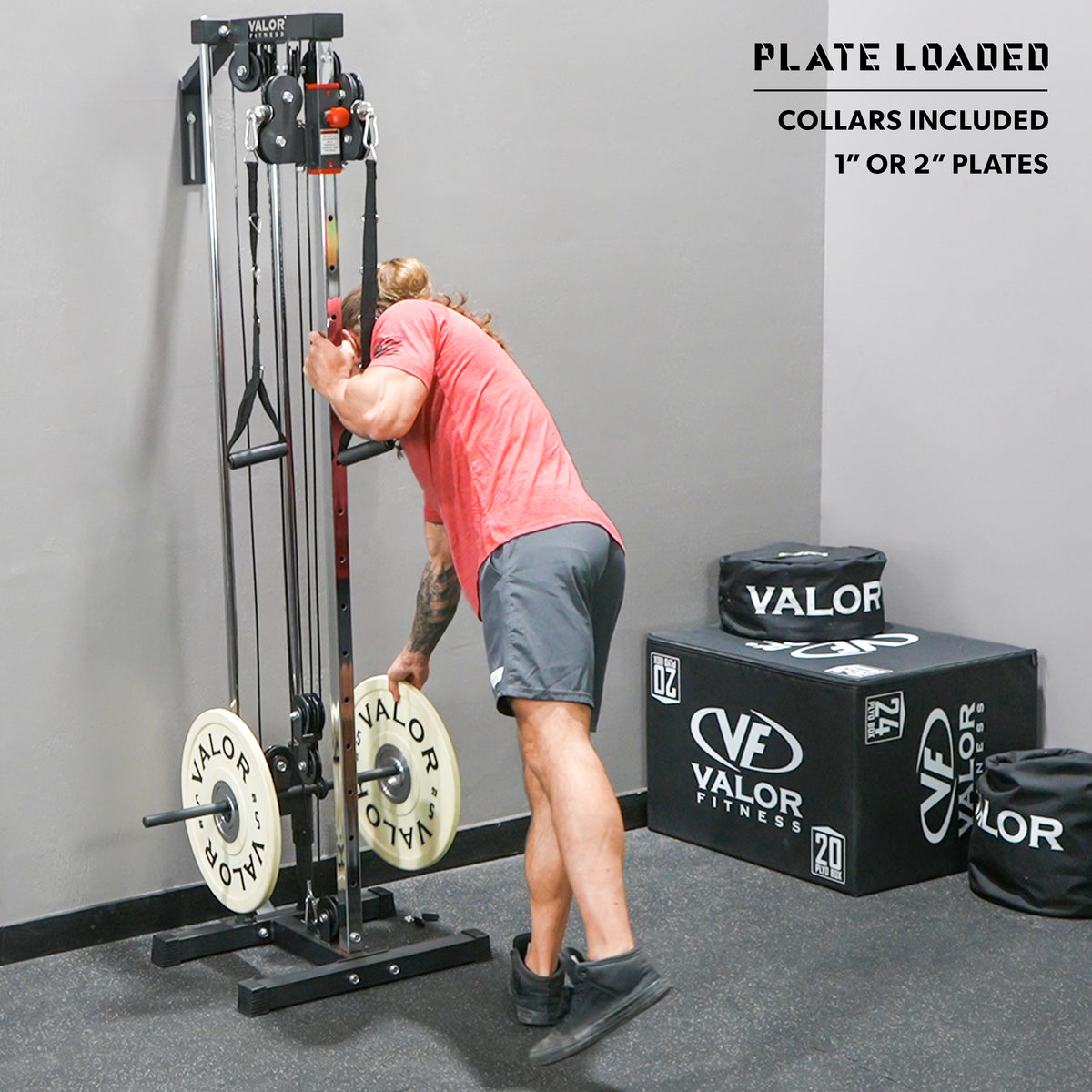

- HOLDS STANDARD OR OLYMPIC PLATES: The BD-62 holds Standard Plates but is commonly used with Olympic Plates as shown in photos. Can be used in combination with our EX-10 Olympic Adapter Sleeve (sold separately) to better secure Olympic Plates.

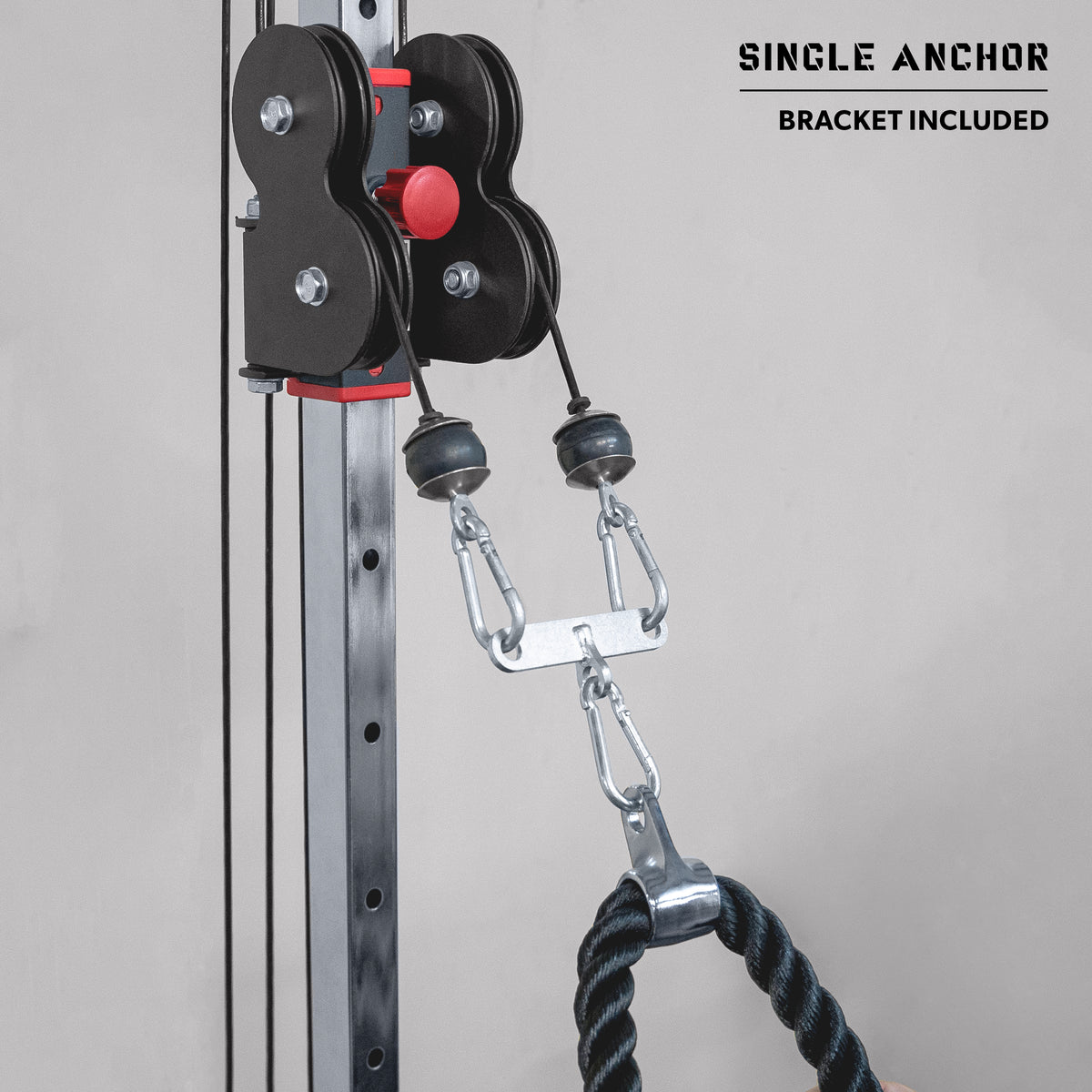

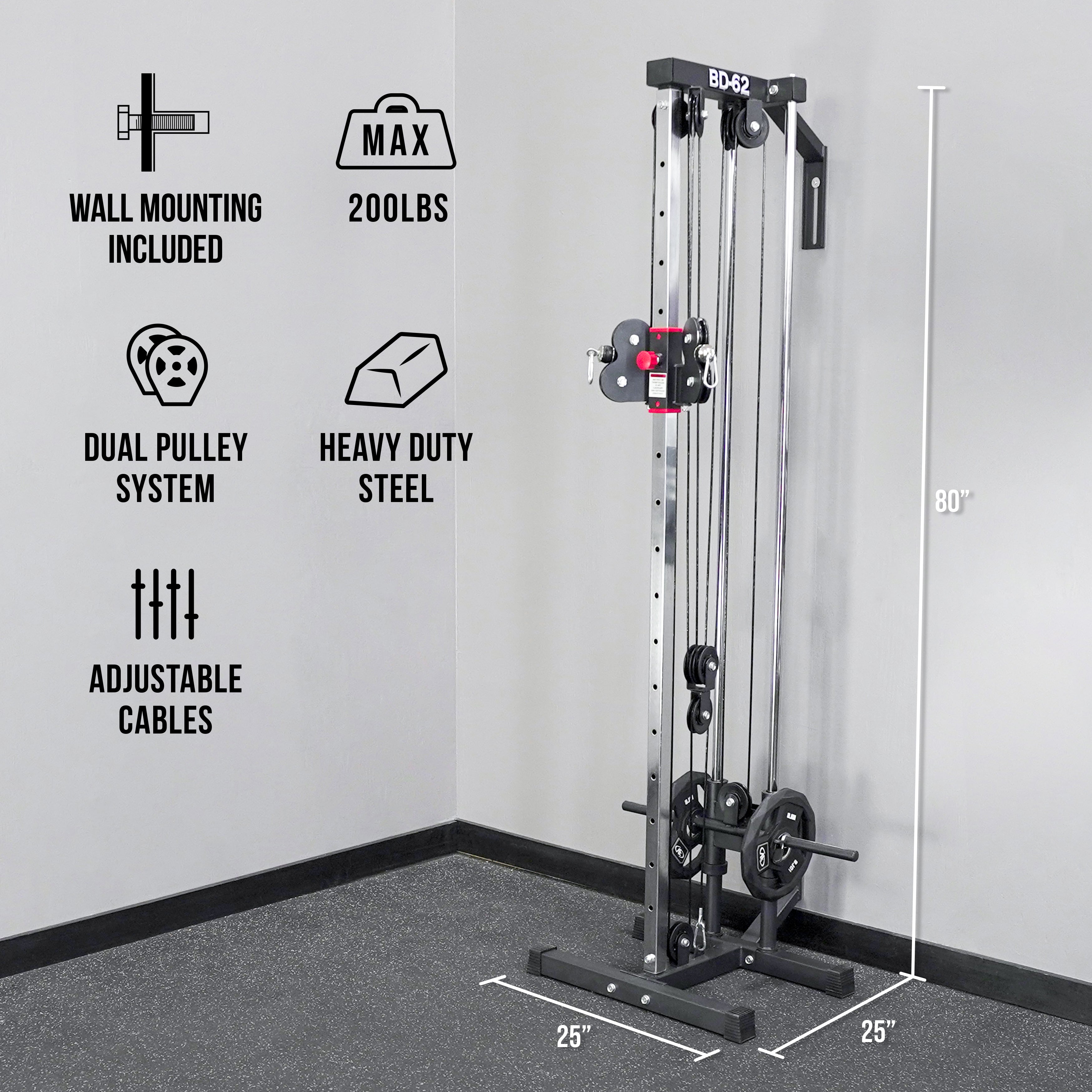

ADDITIONAL: The BD-62 wall mount cable station includes a bracket to create a single anchor point for attachments. The BD-62 measures 80” tall and must be mounted to the wall. The ratio is approximately 1 to 1. Max weight load of 200 lb.
BD-62 Wall Mount Cable Station: Product Video
|SKU||Product Name||Shipping Weight (lbs)||Box Length (in)||Box Width (in)||Box Height (in)||Assembled Dimensions (LxWxH in inches)|
|BD-62||Wall Mount Cable Station||62||80||10||6||25x24.5x80|
BD-62 Bundle Options
CABLE ATTACHMENT BUNDLE FEATURES & BENEFITS:

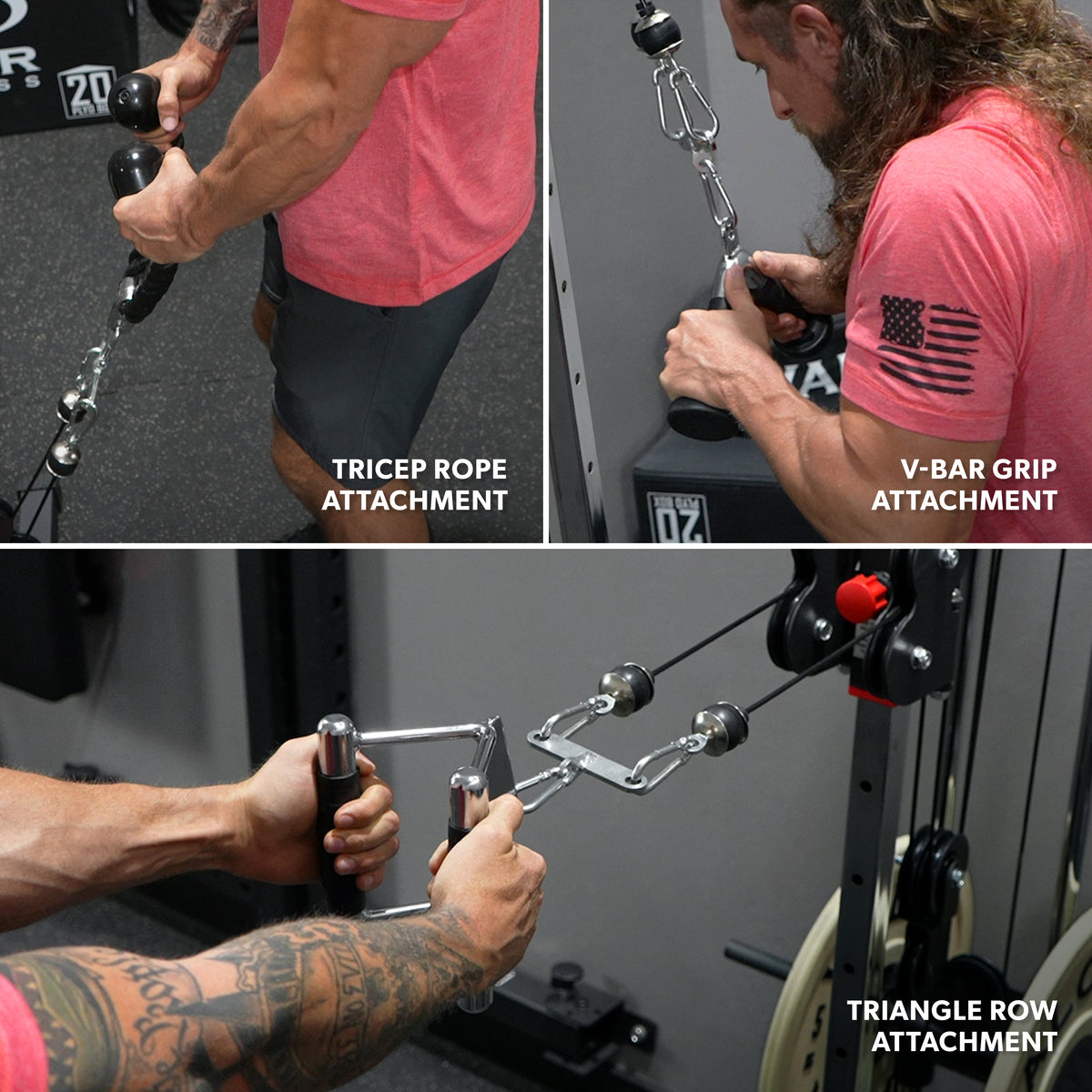

- CABLE PULL BUNDLE: V-Shaped Handle(MB-1), Triangle Chest Pull(MB-4), and Tricep Pulldown Rope(MB-5) to make up the perfect set of cable pulley attachments.
- KNURLED RUBBER GRIPS: Cable Attachment Bundle constructed of knurled rubber grips for firm nonslip grip on the MB-1 V-Shaped Handle and MB-4 Triangle Chest Pull handles.
- HIGH QUALITY: Heavy duty home gym accessories built to last. Constructed of 12-gauge solid Steel and Chrome made to withstand heavy weight at high intensity.
- MULTI-FUNCTIONAL: Can work with any cable machine as weightlifting accessories. Ideal for tricep pushdowns, seated rows, ab crunches, lat pull downs and many others to develop muscles in back, shoulders, lats, triceps, biceps, and forearms.
- ADDITIONAL: These workout accessories are meant for light-commercial use.
Some of our most asked questions.
QUESTIONS & ANSWERSAsk a Question
Hi- I own this product and I would like to know whether there is any recommended lubricant for the machine and any guidance on how to lubricate the machine? My Machine is starting to Make some sounds and not be as smooth so it appears I should be taking some type of action to help. Any insights would be appreciated. Thanks! Anthony
We recommned using any silicone based lubricant for the guide rods and bearings in the pulleys to help with funciton and smoothness. Each pulley has a bearing inside the center hub which can be lubricated as needed. If that doesn't help please email firstname.lastname@example.org and we can help further.
does is have to be mounted to the wall?
Yes, the BD-62 does have to be mounted to the wall to function properly. The support from the wall keeps everything upright and straight
Have the wall-mounted brackets been updated from flat to angled to avoid baseboards? What are the dimensions of the new footprint and mounting heights?
Yes, the BD-62 comes with 2 angled wall-mounting brackets for top and bottom. The brackets are 4 5/8" from the ground to avoid the baseboards. The footprint of the base is 24" x 25" and the plate carriage is 26 1/4" wide.
Could you tell me what the 'travel distance' is of the 'bar' holding the weights to the top of the tower? I'm thinking of buying 2 wall mounts in order to do high and low cable flies, but I'm concerned I won't be able to do full extension. Thanks.
The plate carriage travels a distance of 60" from the resting base position to the top of the tower.
can this be used for tricep push downs and if so, for up to what weight?
You can use the BD-62 for tricep pulldowns. The weight max is 200 lbs.
How long is the section of the machine on the bottom that attaches the main section of the machine to the wall bracket? I am assuming it is approximately 8-9" based on a previously asked question about the max diameter of the weights that can be used, but please confirm.
The wall bracket that sits between the main section of the machine and the wall is 8". Also, the measurement from the plate pegs to the wall is 10 1/2" which would allow you to use any plate with a 19" diameter or smaller.
It looks like one of the pics has the bottom and top mounts angled either up or down but all the videos and other pics show them straight. Which is the actual current version? I ask because I have baseboards. Thank you.
The current version of the BD-62 has both top and bottom angled mounting brackets to accommodate for base boards.
do have a wall mounted cable station that has 2 inch weight posts?
The BD-62 is our only wall mount cable machine but you can purchase our EX-10 Olympic sleeve adapters to make the BD-62 more compatitble with 2" plates.
Hi. What is the largest diameter weight plate that the bd 62 can accept?
The BD-62 can accept any weight plate 19" in diameter or smaller
Can you set up 2 of these to create a cable crossover ?
Yes, you can set up two of the BD-62 wall mount cable stations to function as a cable crossover. Since the pulley brackets swivel side to side you can use them at almost any angle.
Can it attach to a concrete wall? Thanks
Yes, you can mount this to a concrete wall. The bolt included is for wood studs but you would need an expansion bolt for concrete.
Hello, Would the upright pulley pin holes be able to accommodate 5/8" accessories or are they of a smaller diameter?
The holes in the chrome upright are 1/2" in diameter.
Is there a weight stack option available for the BD-62?
We do not have a weight stack option for the BD-62, as it is meant to be used with plates.
Could this bolt up to a Rogue Monster Lite Squat Rack instead of a wall?
The BD-62 is specifically meant to be mounted to a wall. Any misuse or incorrect mounting will void any warranty.
How much distance is needed from the wall to where someone would be standing while doing these exercises. Want to make sure we have enough space for this.
It would depend on how you are using the machine - if you pull both handles simultaneously, the cables extend up to 5 feet. If you pull just one handle, the cable will extend up to 10 feet. The amount of space you need will depend on how you use it, what specific exercise you may be doing at the time, etc.
What size bolts are needed to attach the unit to the wall?
All bolts are included in the purchase.
How high off ground is top of bottom mounting bracket? Trying to plan how I would mount.
The top of the mounting bracket is approximately 9 inches off the ground.
Do you sell replacement cable for the BD-62 and how long is the cable?
To purchase a replacement cable, please give us a call at (727) 895-9525.
Is it possible to do bench presses with my BD-62 unit?
It may be difficult to do presses while laying flat on a bench, and this is not one of our promoted exercises with this unit, but you can perform standing chest press at different angles to emulate the bench press. However, if you are able to find a way to perform flat bench presses and you feel it works for you, then by all means go ahead.
If I load the machine with 40lbs of plates and use only one pulley how much weight will I be pulling?
If you only use one side of the pulley you subtract 5 lb for every 20 lb you add. So if you load the machine with 40 lb and use only one side, you will be pulling 30 lb. If you added 60 lb and use only one side, you will be pulling 45 lb, and so on and so forth. So each time you add 20 lb, and use just the one side, you will subtract another 5 lb.
Hi does the Ex-1 attach directly to the cable station, so that we can use any bench, or does it need to attach directly to one of the Valor DD benches to use as a leg/thigh support for lat pull downs? Thanks!
So, I decided to go with this machine because I liked the smaller foot print and added possibilities but now I can’t seem to find a Lat pull down bench seat with the leg/thigh support like on the cb-12. Any suggestions?
Hello, if I bought two and spaced them out, could I use them for cable crossovers? Also, the room I want to use these is has baseboards - do I use some shims to make sure there's good contact with the wall?
Thanks for your question! Yes, you can do cable crossovers if you purchase two machines. We have seen people use one machine, but it's difficult to get the full range of motion. In regards to the baseboards, it depends on the depth - but a 1x2 or 1x4 piece of wood would work best to make sure there is a sufficient mount with the wall. It will be more sturdy/stable than other "shims" and may even look nicer.
Can this be attached to one of your racks/rigs?
Thanks for your question! The BD-62 must be mounted to a wall. If it is modified to attach to another surface, it may void your warranty.
Will bumper plates fit? And can you do cable flys with both?
Thanks for your question! Yes, the BD-62 will fit bumper plates. You can do cable flies standing in front of the machine - the BD-62 is excellent for single arm cable crossovers as well as several other exercises.
I plan on buying a lat bar to use with this machine. How would I attach it, to one pulley or two?
Thanks for your question! You can attach the bar to both pulleys, or just one side.
If you use both pulleys, it is suggested you use a separate carabiner clip to attach to the 2 clips from both sides of the pulley, and then attach the lat bar to the added carabiner clip. In this scenario, the resistance ratio would be 1:1, so if you load the machine with 25 pounds, you will be pulling 25 pounds. If you just use one side of the pulley to attach the lat bar, or another attachment, take into account that every 25 pounds you subtract 5 pounds. For example, if you load the machine with 25 pounds, you will actually be pulling 20 pounds. If you load the machine with 50 pounds, you will actually be pulling 40 pounds, and so on and so forth.
How wide is the top cross member. I have low ceilings in my basement, wanted to know if the top cross member would fit in between ceiling joists.
Thanks for your question! The crossbeam at the top of the unit measures 8 inches wide.
BD-62, Wall Mount Cable Station: What is the height?
The BD-62 is 80" tall
what size bolts for concrete need size got machine from friend never installed came with no bolts
For mounting into concrete walls you will want a tapcon 5/16 x 3" screw or sleeve expansion bolt.
